Project Overview
A landmark transit-oriented development (TOD) directly integrated with a major MRT interchange station in Singapore — comprising a 6-level retail podium (85,000 sqm), twin 40-storey Grade A office towers, 600 residential units across three blocks, and a 12,000 sqm community civic center — required a comprehensive wayfinding and precinct identity program. The signage had to serve 250,000 daily commuters, residents, and visitors across a complex 3D circulation network while withstanding Singapore’s tropical marine climate (C5-M corrosivity).
Scope

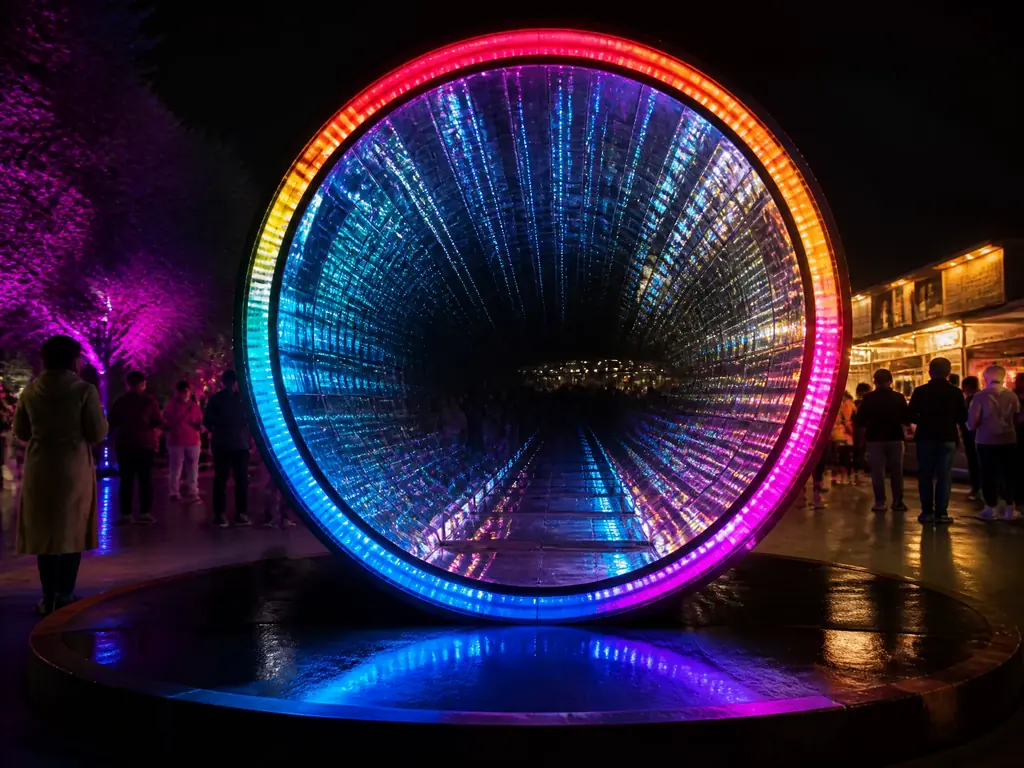

- Precinct identity portals: 8 infinity mirror portal markers at MRT link bridges and civic plaza entries — 3m diameter circular frames with LED infinity mirror effect, programmable color scenes for national days/festivals, IP68 submersion-rated bases

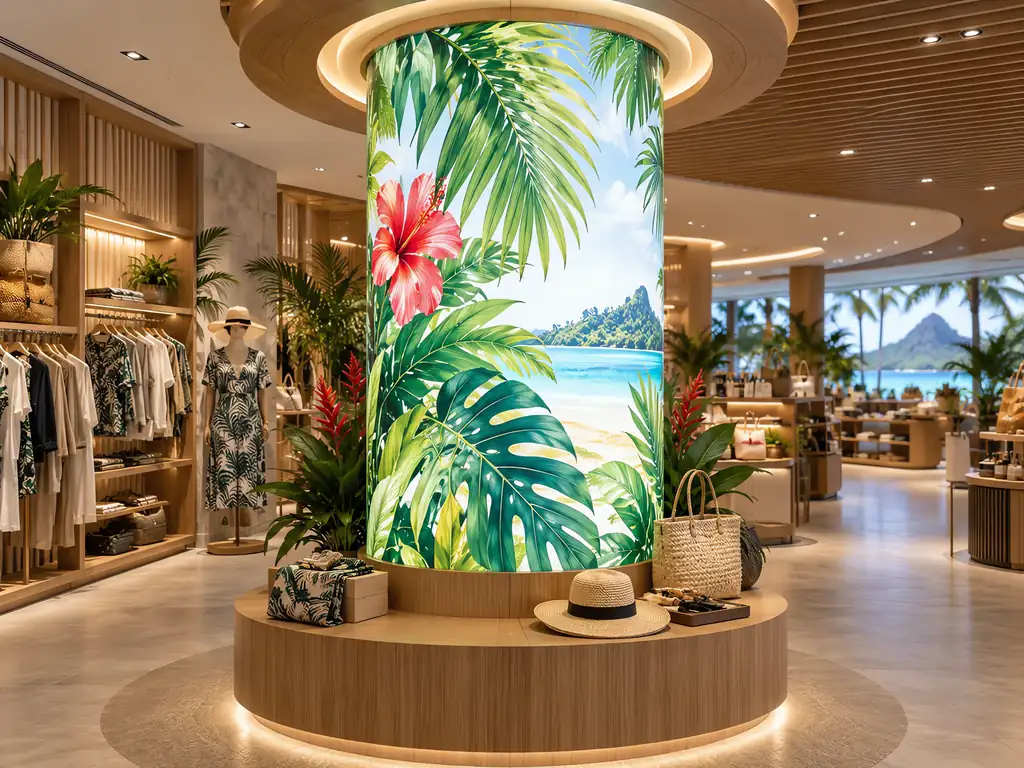

- Column-wrapping curved light boxes: 120+ curved flexible light boxes wrapping circular and oval columns throughout the retail podium — custom-radius aluminum extrusions with silicone-edge fabric faces, seamless 360° illumination, IP66
- Vehicular wayfinding: 45 double-sided directional signs for basement car park (4 levels), taxi/private-hire drop-offs, loading bays — LTA-compliant retroreflective graphics, dynamic LED occupancy integration
- Pedestrian wayfinding: 200+ blade signs, finger posts, and tactile maps at 3D decision points (link bridges, escalator banks, plaza crossings) — multi-language (EN, ZH, MS, TA), tactile/Braille per BCA Code

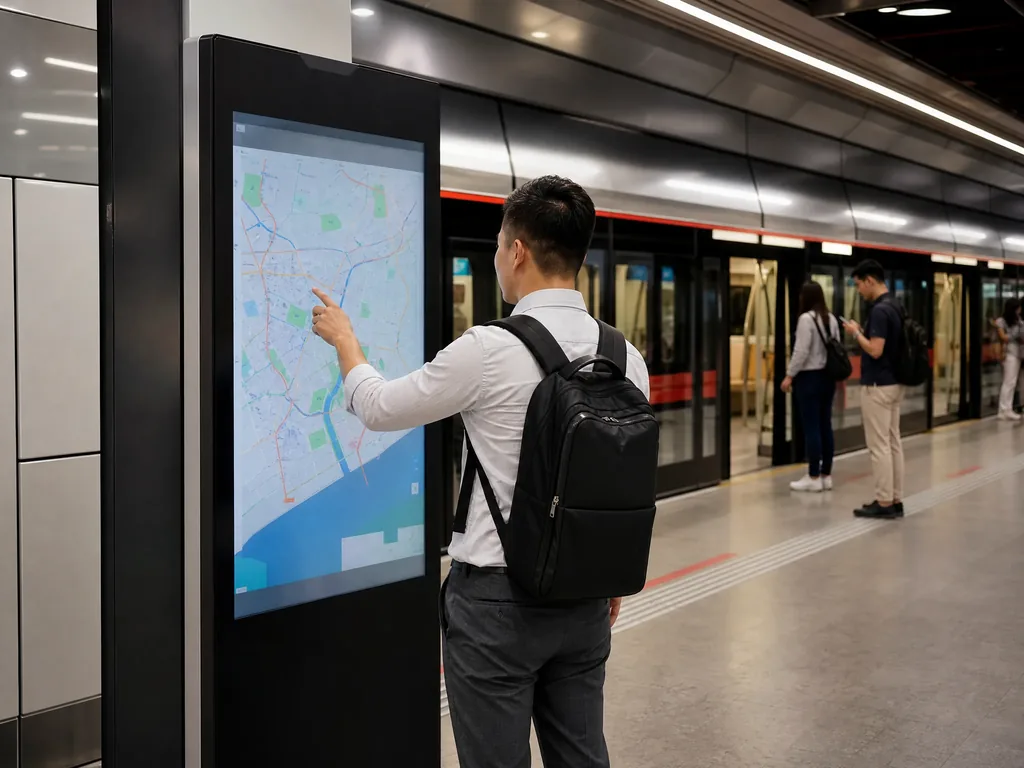

- Digital directories: 35 interactive 55″ totems with real-time MRT arrival integration, retail/tenant search, accessible audio, LTA data.gov.sg feed
- Office tower lobby identification: halo-lit stainless steel letters on each tower crown and lobby entrance, visible from MRT viaduct
- Residential block addressing: illuminated address markers with unit range directories, warm-white (3000K) for residential ambience
Technical Specifications
- All exterior: C5-M marine-grade (ISO 12944-5), 316L stainless hardware, powder coat (Interpon D2525, 15-year warranty)
- Curved light boxes: custom-radius aluminum 6063-T5, silicone-edge fabric (blockout + diffusion), LED pitch 25mm, MEAN WELL HLG drivers
- Infinity mirrors: two-way mirror acrylic + LED ribbon, IP68 base (continuous immersion), DMX/RDM control
- Tropical specs: 95% RH operating, salt spray 1,000 hr (ASTM B117), thermal cycling -10°C to +55°C
- Control: BACnet/IP integration with BMS, LTA SCADA feed for car park occupancy
Result
BCA Green Mark Platinum — signage contributed 3 points (energy-efficient LED, adaptive dimming, materials). LTA audit: zero non-conformances on wayfinding compliance. Commuter wayfinding satisfaction (LTA quarterly survey) improved from 3.8 to 4.6/5.0. The infinity mirror portals became Instagram landmarks — #precinctname 45K+ posts in first 6 months. Retail podium occupancy reached 98% within 3 months (vs. 85% typical for new TOD). The single-specification curved light box system (120+ units, 18 unique radii) is now the developer’s standard for three upcoming TOD projects.
