The brief
A dental & medical clinic in Canada was consolidating two smaller practices into one new-build location on a busy arterial road. The building shell was handed over with no exterior identity at all, so both pieces of street-facing signage had to be created from zero: a set of letters over the main entrance, and a freestanding sign at the roadside that a patient could read from a moving car.
Two constraints shaped everything. The clinic operates in a bilingual market, where English and French carry equal status on public-facing signage — both language lines had to stay legible at the same distance, rather than one being shrunk to fit underneath the other. And a Canadian clinic day starts before sunrise and ends after dark for much of the year, so the signage had to perform through low winter sun, wet nights and long dark hours without reading as a retail light box bolted to a medical building.
What we built

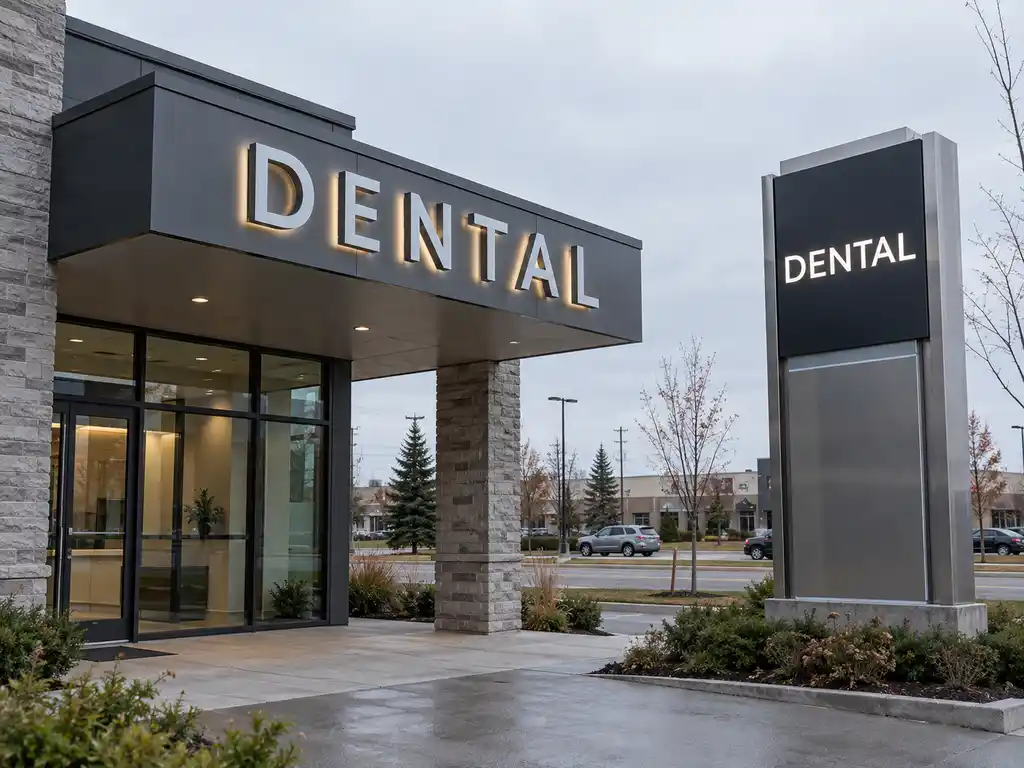

We delivered a two-part exterior system: illuminated entrance letters on the canopy fascia, and a freestanding double-sided pylon sign at the road edge. Both use the same typeface, the same return depth and the same LED colour temperature, so the building and the roadside sign read as one identity from the street.

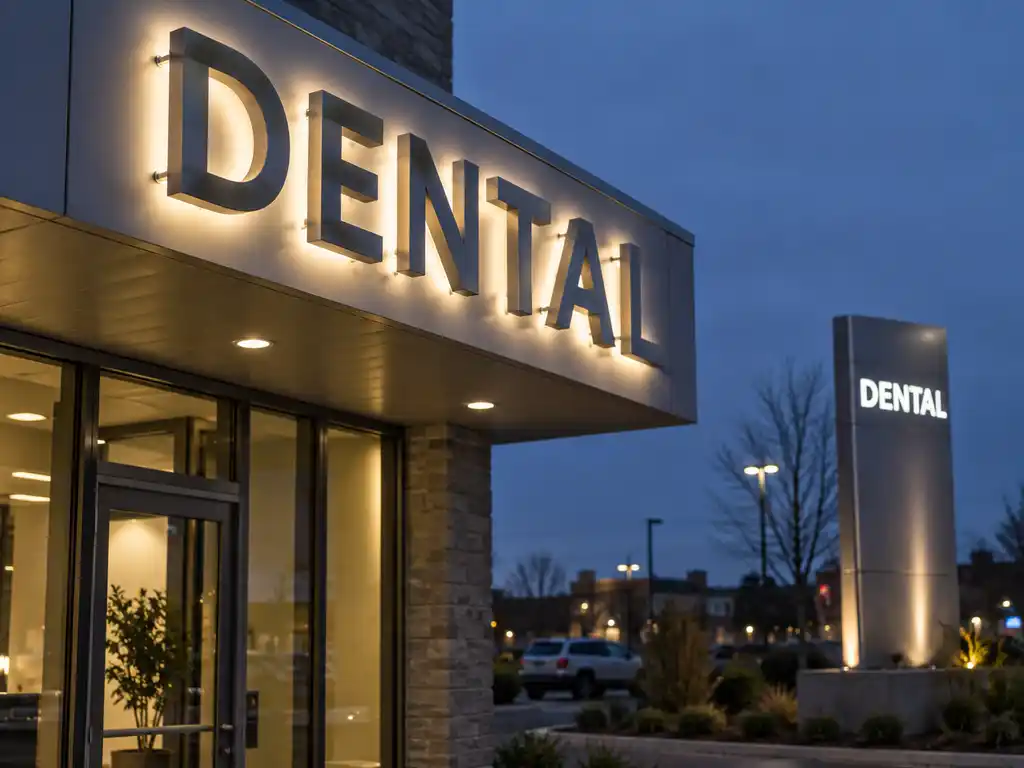

- Entrance lettering: white 3D back-lit channel letters with high-brightness LED behind a diffusion face — an even, shadow-free glow across each stroke instead of the hot spots you get from an undiffused module layout
- Secondary language line: electroplated stainless steel back-lit letters for the second language, so it reads as solid polished metal in daylight and as a soft halo after dark, holding its own against the brighter line above it

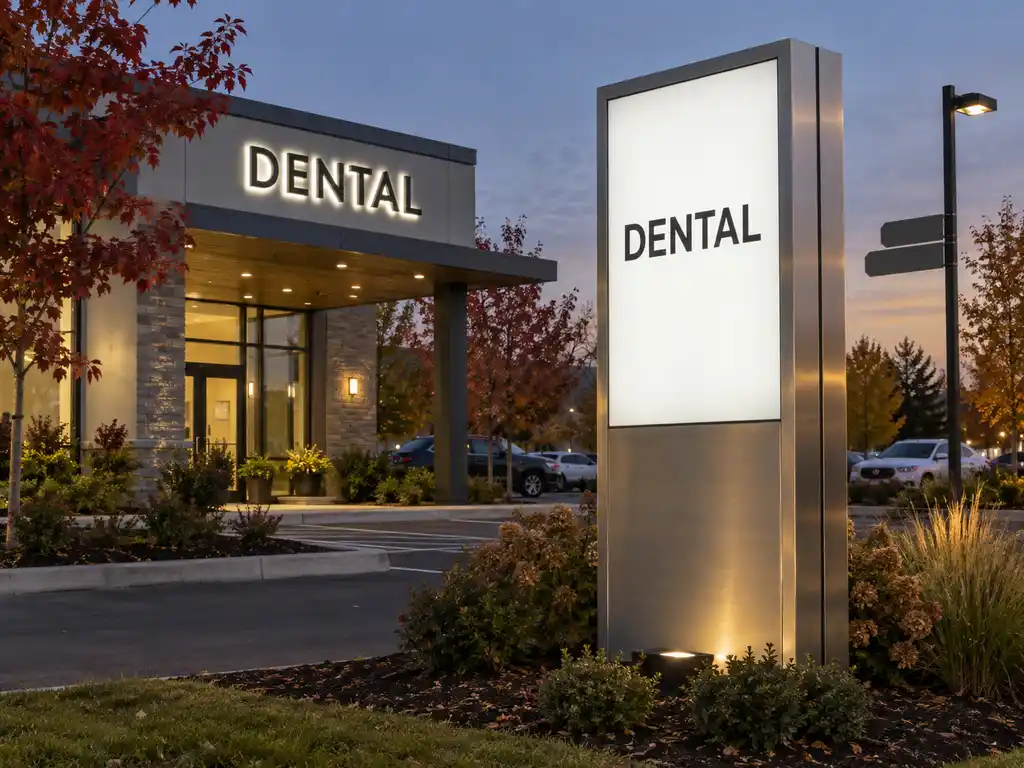

- Pylon cabinet: a double-sided 304 stainless steel light box body with weather-sealed edges and custom proportions matched to the sign bylaw envelope on that frontage
- Illuminated faces: sandwich luminous construction on the cabinet faces — aluminium composite back panel, LED matrix and a high-diffusion front panel in a 35 mm profile, which is what produces the uniform panel light with no visible modules
- Bilingual typography: English and French set at the same cap height in two stacked lines, with French diacritics cut as part of the letterforms rather than added as applied vinyl

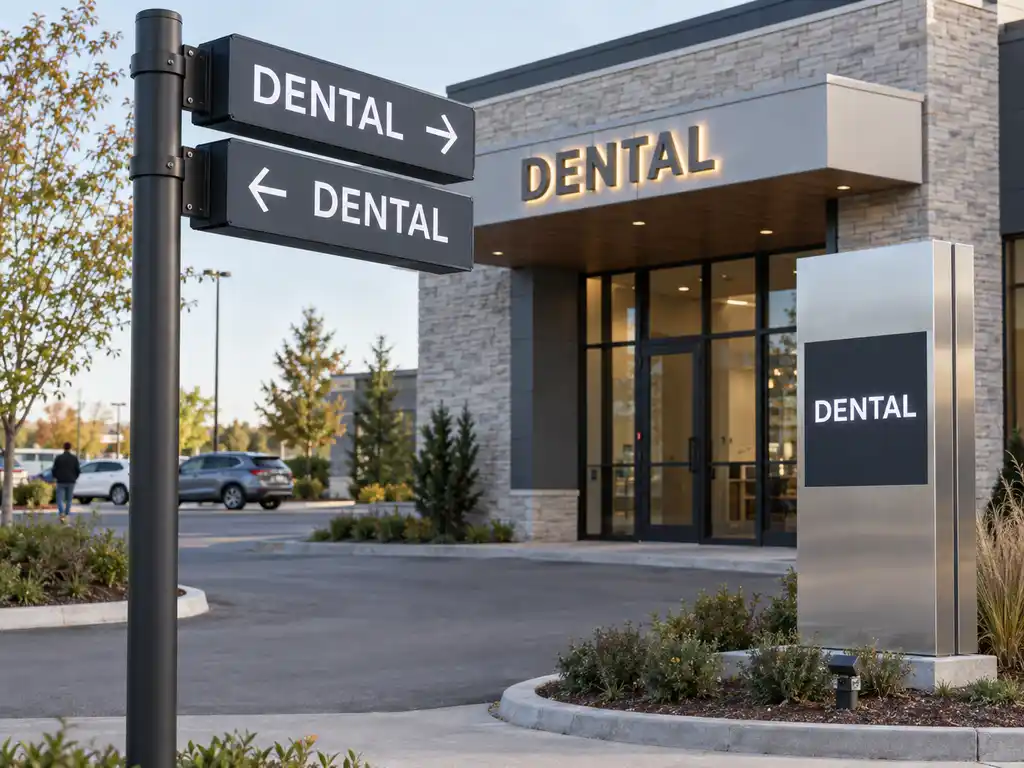

- Roadside wayfinding: a pole-mounted directional block signpost carrying department and parking arrows on stacked blades, kept visually identical to the pylon so the two do not look like separate sign schemes
- Illumination: externally accessible LED modules and drivers inside sealed housings, so a module or driver can be swapped from the face side without dismantling the cabinet
The entrance letters come from our white 3D back-lit channel letter and electroplated back-lit letter ranges; the pylon is built from the stainless steel light box body with sandwich luminous faces. Because all four are standard ranges, a replacement letter or a new cabinet face later re-orders against the same production file.
How the project ran
The clinic supplied its architectural elevation drawings, the bylaw envelope for the frontage and the exact spelling of both language lines. We returned scaled layouts showing the letters positioned against the fascia and canopy joints, the pylon sized against the permitted height and setback, and the two language lines proofed at equal cap height.
The bilingual layout is where most exterior signage for clinics goes wrong. The usual shortcut is to set the English line large and drop the French line underneath in a smaller size, which is immediately readable as a hierarchy that was not intended. We proofed both lines at the same height, adjusted only the tracking to balance the two line lengths, and confirmed the diacritics — the accents on the French characters — as cut letterforms rather than applied overlays that peel at the edges after a winter.
Once the layout was approved we produced one finished letter and one pylon face panel as a physical sample, so the clinic could check the finish, the return depth and the light temperature in daylight and after dark before the full set went into production. The remaining letters and the cabinet were then finished in one batch, which keeps the plating tone and the LED colour consistent between the facade and the roadside sign.
Delivery and installation
The set shipped in two crates — letters and mounting hardware in one, pylon cabinet, pole sleeve and faces in the other — each with a 1:1 paper template, a wiring diagram and the bolts, spacers and washers for the concealed fixings. The clinic’s electrical contractor needed the templates and the connection points only, not a second survey, because the letters were produced from the approved elevation rather than measured on site.
For Canada, the permit drawings are the long pole in the tent, so we supply shop-style dimensioned layouts and material and illumination notes in the format the clinic’s contractor submits locally, and confirm the applicable electrical and structural requirements with that contractor before production. The pylon was shipped with its pole sleeve so the footing could be poured and cured while the cabinet was in transit, which kept the installation to a single site visit.
Outcome
The clinic now has one exterior identity that works at both distances. From the road, the pylon is legible well before a driver reaches the turning; at the entrance, the lettering is bright enough to locate the door after dark without glare spilling onto the residential side of the site. Both language lines carry the same weight, so neither reads as an afterthought. Because the facade letters, the pylon cabinet and the wayfinding blades were all produced from one approved file, a future second location or a replacement letter can be reordered against the same standard instead of a fresh design round.
