The brief

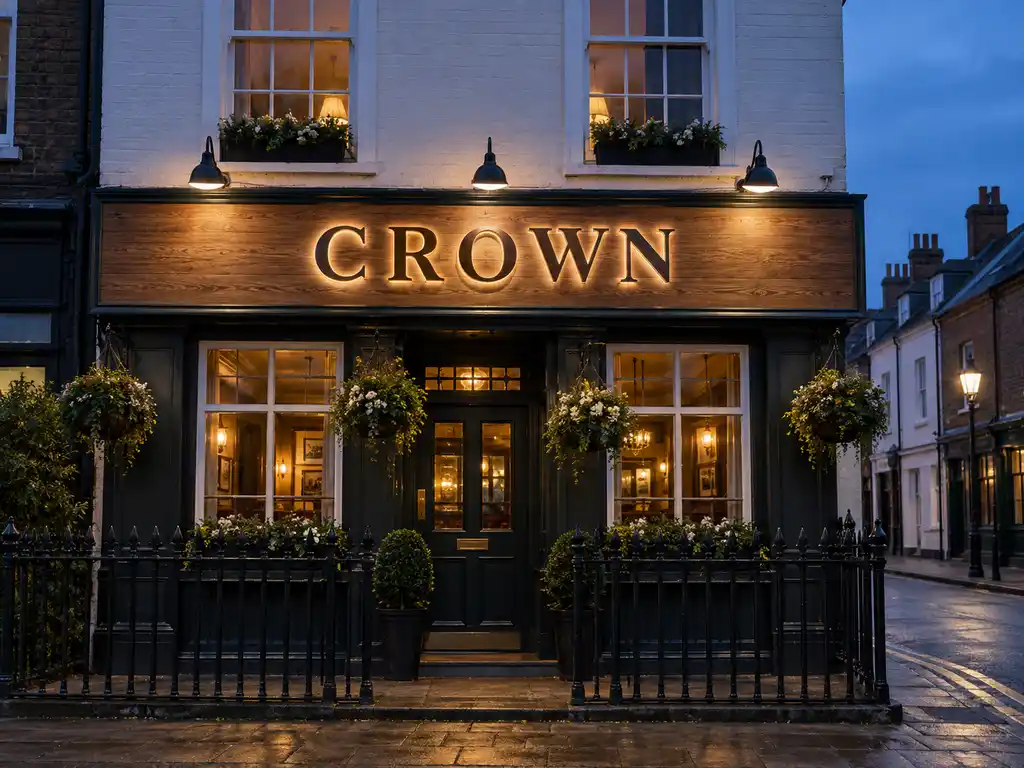

A UK pub and hospitality chain was opening and refurbishing venues faster than its signage could keep up. Each site is a different high-street building — brick elevations, render, painted timber joinery — but the chain wanted every fascia to look like it belonged to the same family. The signs also had to keep their traditional character in daylight: a flat, bright LED box bolted to a period frontage would have looked wrong from the pavement. What the chain needed was a fascia that reads as painted timber joinery by day and glows after dark, produced to one standard so that site four looked exactly like site one.
What we built

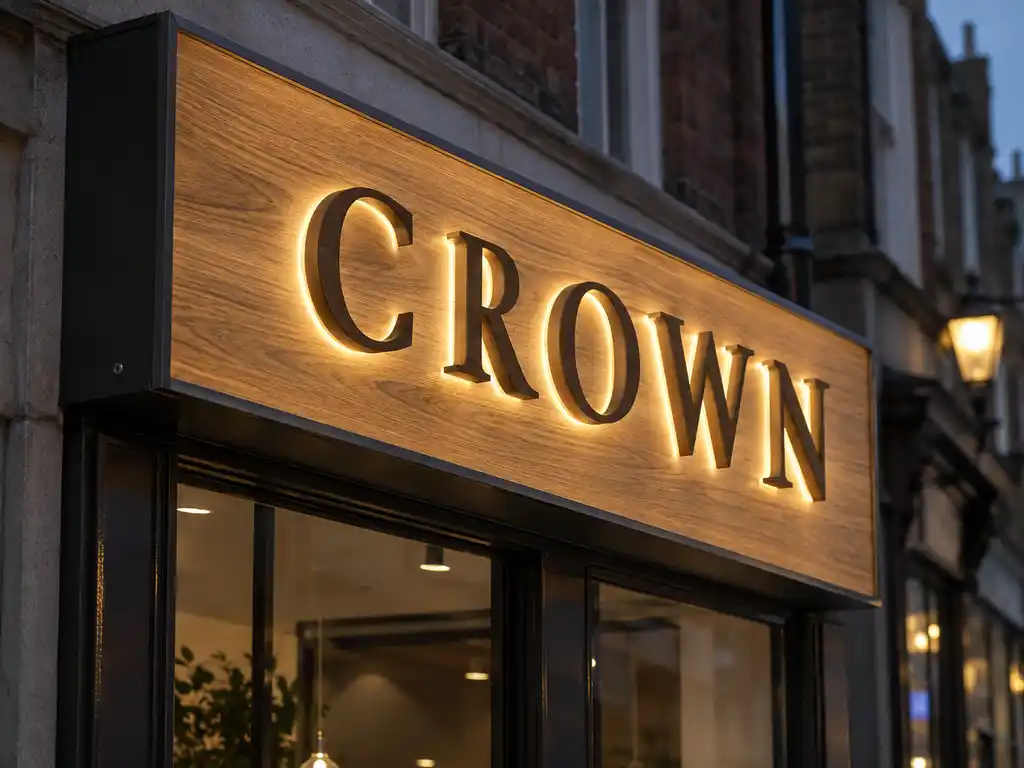

We built a repeatable illuminated fascia system: an aluminium-composite light box body with a timber-grain face finish, carrying individually mounted stainless steel letters with a warm timber-tone finish. The fascia keeps the depth and shadow line of a traditional sign board, while LEDs behind a diffusion panel light the letterforms evenly from inside the body — no visible tubes, no hot spots on the face.
- Fascia body: aluminium composite light box construction with an LED diffusion panel and weather-sealed edges — an ultra-slim profile that sits tight to the brickwork
- Face finish: timber-grain effect applied to the fascia face, so the sign reads as painted timber joinery in daylight and as a lit panel after dark

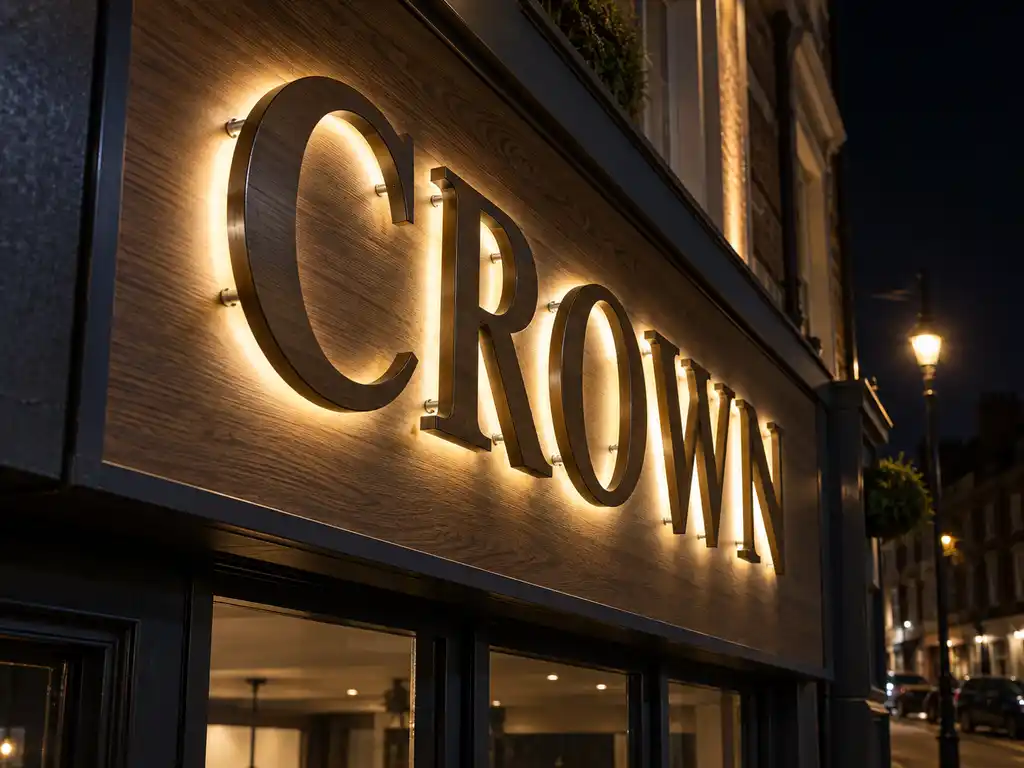

- Lettering: stainless steel channel letters with a warm timber-tone colour plating, back-lit with LED — solid metal by day, halo-lit by night
- Illumination: high-brightness LED modules behind a uniform diffusion layer, with front-access panel replacement so a fascia face can be serviced without removing the body
- Mounting: concealed stand-off wall mounting with individual letters replaceable against the original production file
- Rollout standard: one approved production file per fascia type, with identical bracket spacing, letter height and wiring practice on every venue
The fascia body comes from our sandwich luminous sign construction and the letters from our electroplated back-lit letter range, with the higher-output stainless steel light box body used where a venue pulls straight onto a road. Because both are standard ranges, a replacement panel or a single letter re-orders against the same production file.
How the project ran
The chain supplied a site schedule, a photograph of each elevation and the fascia dimensions; we returned a scaled layout per venue showing how the lettering would sit against brick or render, plus a sample fascia unit for sign-off on the timber-grain finish, the letter depth and the warm white light temperature before the rollout went into production.
That sample stage is what makes a multi-site programme work. Once the finish and the light temperature were approved on one unit, every subsequent venue was produced against the same standard — so the third and the thirtieth fascia are the same colour, the same brightness and the same depth. Letter forms were then cut and finished in batch per site, which keeps the finish consistent and avoids the slight tone drift you get when venues are produced months apart.
Delivery and installation
Every venue shipped as its own flat-packed crate, labelled with the site name and packed with a 1:1 layout template, a wiring diagram, installation notes and the stud bolts, washers and nuts for the concealed fixings. Because the chain’s own contractor fitted the signs, the same drawings were used on every site — which cut the on-site survey time to a check rather than a measure-up. Installations were scheduled overnight so the venues kept trading with the fascia clear and safe by opening time.
For the UK, we confirm the applicable electrical and structural requirements with the chain’s contractor before production, and each unit arrives sealed with wiring brought out to a single agreed point so the connection is a straight swap into the existing supply.
Outcome

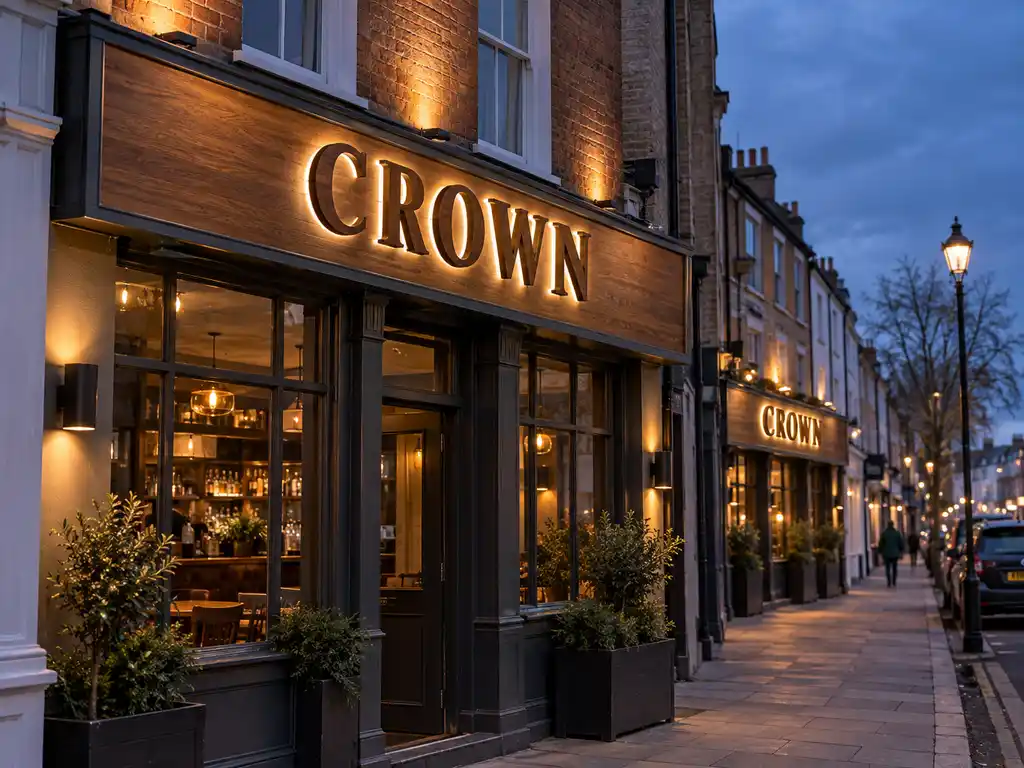

The chain now has one signage standard it can specify across the estate rather than a collection of one-off signs. A refurbished venue, a new opening or a damaged letter all come back to the same production file, so the fascia matches the rest of the estate without a fresh design round. In daylight the signs still look like traditional painted fascia board; after dark each one lights evenly across the lettering, which was the whole point of replacing the flat panels the chain had been using.
