Project Overview
A global cloud provider’s new European cloud region — a 150 MW hyperscale data center campus near Frankfurt comprising 6 windowless hall buildings (20,000 sqm each), central energy center, substation, and administrative building — required an exterior identification and wayfinding system that prioritizes operational security, regulatory compliance (BSI KRITIS, EN 50600, GDPR), and zero light pollution for the surrounding residential/agricultural area.
Scope

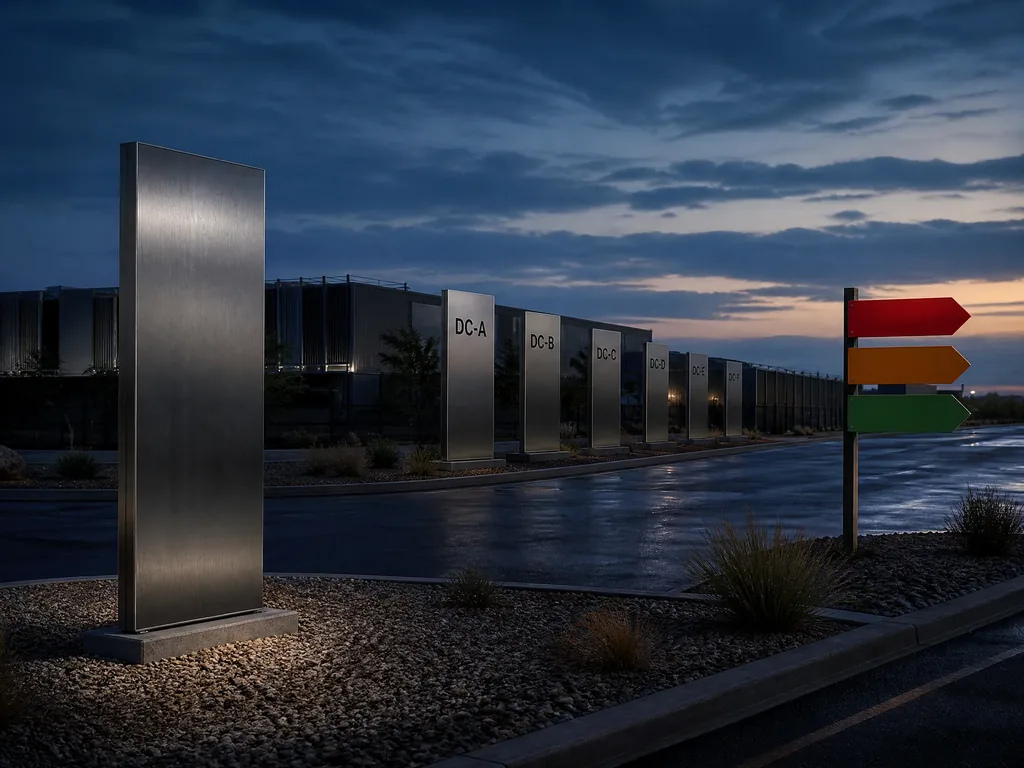

- Building identification: 12 non-illuminated brushed stainless steel markers (316L, 6mm plate, CNC-milled typography) — building codes only (DC-A through DC-F, EC, SUB, ADM), no logos, no illumination, mounted on blast-resistant standoffs

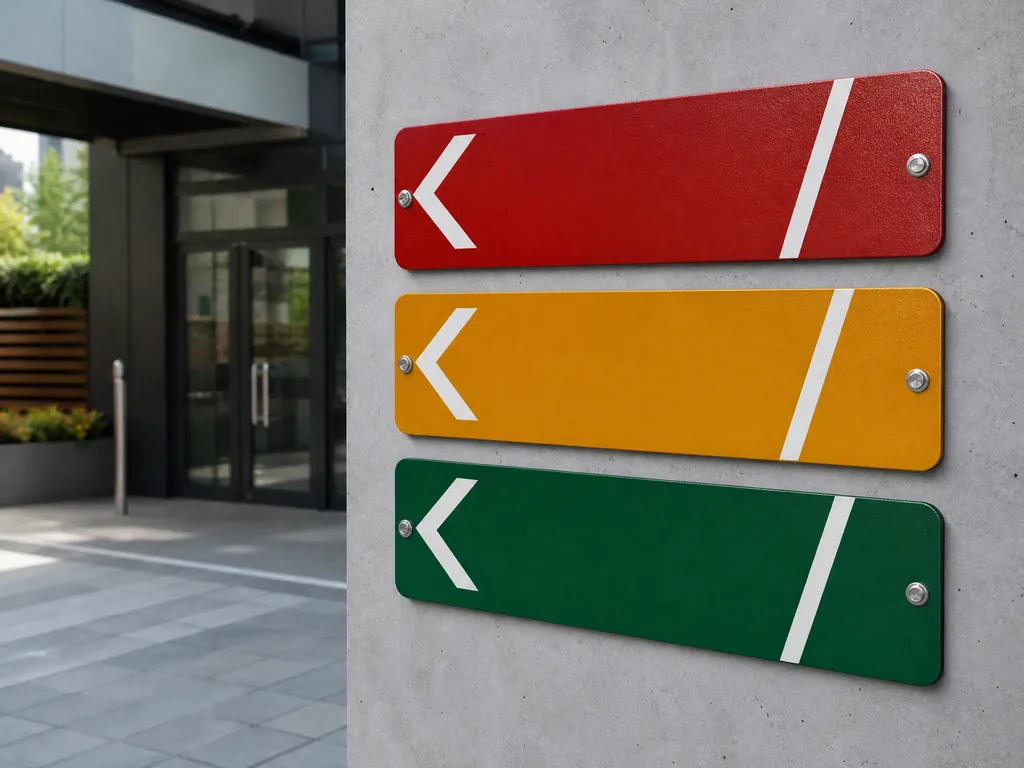

- Security zone wayfinding: 60 color-coded directional signs (Red = Restricted/Server halls, Amber = Operational/Meet-me rooms, Green = Public/Admin) — powder-coated aluminum (RAL 3020/1023/6029), retroreflective graphics, zero illumination, tamper-proof fasteners
- Vehicular routing: 25 HGV directional signs for fuel delivery (diesel, HVO), battery module logistics, waste heat export — DIN 14675 compliant, reflective only

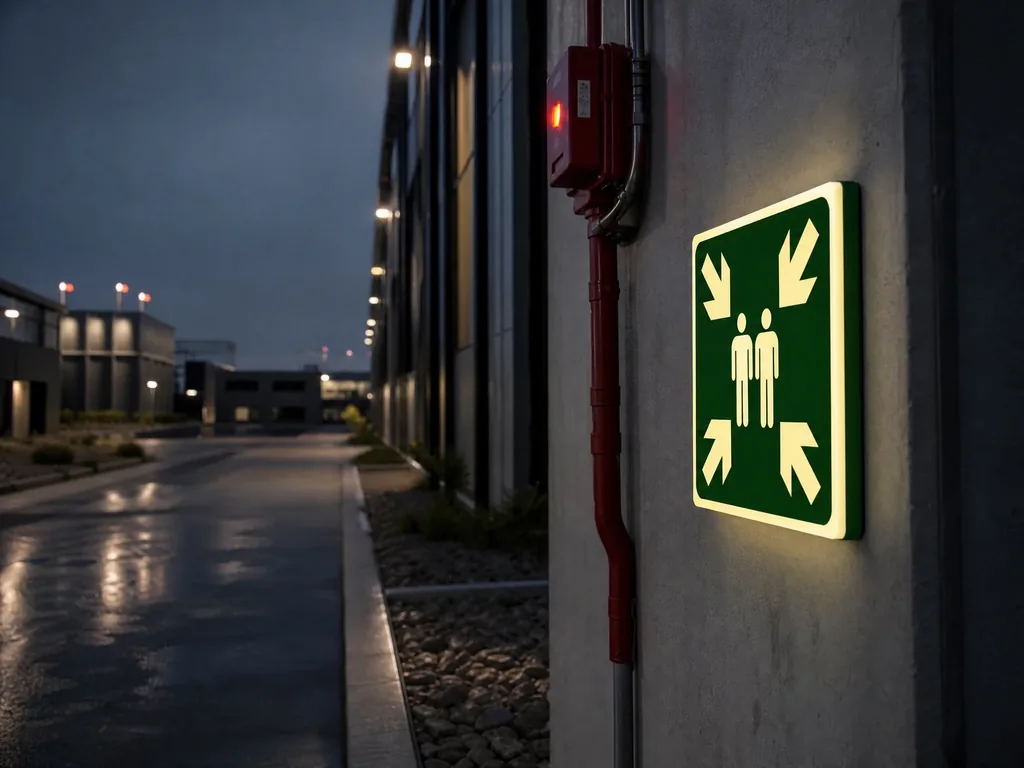

- Emergency assembly: 18 tamper-proof assembly point markers with photoluminescent backing (DIN 67510), integrated with VESDA aspiration detection and gas suppression (Novec 1230) — automatic illumination only on alarm
- Perimeter security: fence-line identification markers every 50m (ISO 19650 BIM-coordinated), CCTV/perimeter intrusion detection integration points
- Substation & energy center: high-voltage warning signage per DIN EN 50110, arc-flash boundary markers, switching procedure placards
Technical Specifications
- All signage: zero continuous illumination (dark campus policy), photoluminescent only where life-safety requires
- Materials: 316L stainless (building IDs), marine-grade aluminum EN AW-5754 H111 (directionals), powder coat (Qualicoat Class 2, 25-year)
- Fasteners: security Torx, breakaway bases for vehicular zones, chemical anchors for blast resistance
- Photoluminescent: DIN 67510 Class C, 300 min luminance, integrated with BMS (Siemens Desigo CC)
- Compliance: BSI KRITIS §8a, EN 50600-2-4 Availability Class 4, GDPR Art. 32 physical security, DIN VDE 0108 emergency lighting
Result
BSI KRITIS audit: zero findings on physical identification/wayfinding. EN 50600 Availability Class 4 certified. Dark campus policy validated — zero light pollution complaints from neighboring municipality. Operational security team reports 100% first-time visitor navigation success for authorized personnel. The non-illuminated spec reduced campus electrical load by 18 kW continuous vs. traditional illuminated signage. The single-specification security-zone color system (Red/Amber/Green) is now the provider’s global standard for 14 data center regions.
