Project Overview
A master-planned 3.8-ha entertainment precinct in a Tier-1 Asian gateway city — combining 45,000 sqm of retail/dining, 8 live music venues (200-2,000 cap), 4 nightclubs, 12 rooftop bars, and a 3,000-seat indoor arena — required a district-wide night-economy identity and wayfinding system that functions as both navigation infrastructure and social media magnet. The signage had to withstand typhoon winds (Zone 4), marine corrosion (C5-M), and 24/7/365 operation in a high-density nightlife environment.
Scope

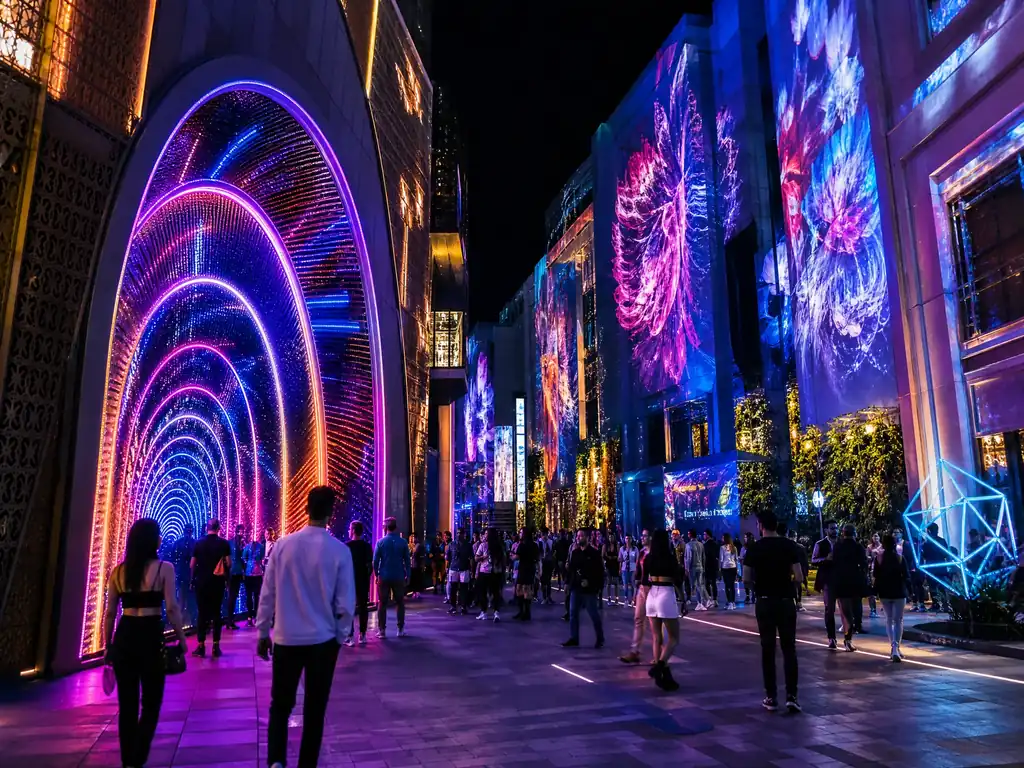

- District entry portals: 6 infinity mirror portal arches (5m span) at primary pedestrian entries — two-way mirror acrylic + addressable LED ribbon, programmable scenes synced to district event calendar, IP68 bases, wind-rated Zone 4

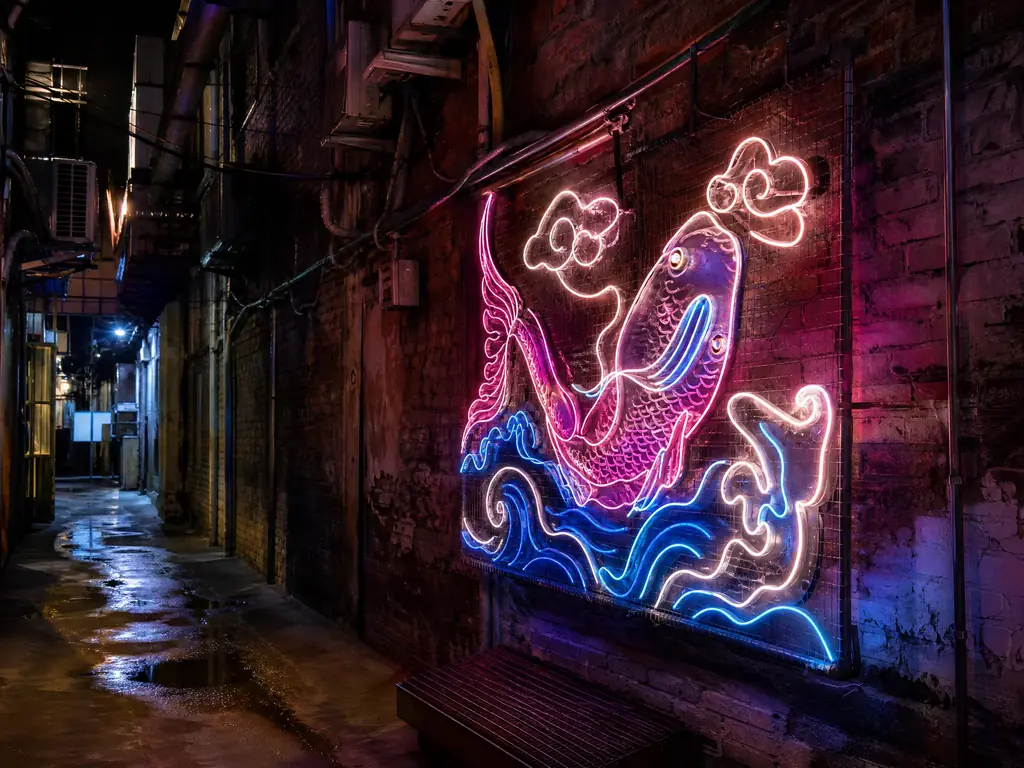

- Custom shaped neon artworks: 200+ unique neon sculptures (glass tube + LED neon flex hybrid) across facades, alleyways, and rooftops — artist-commissioned designs reflecting local culture, DMX512 addressable, 3000K-6500K tunable

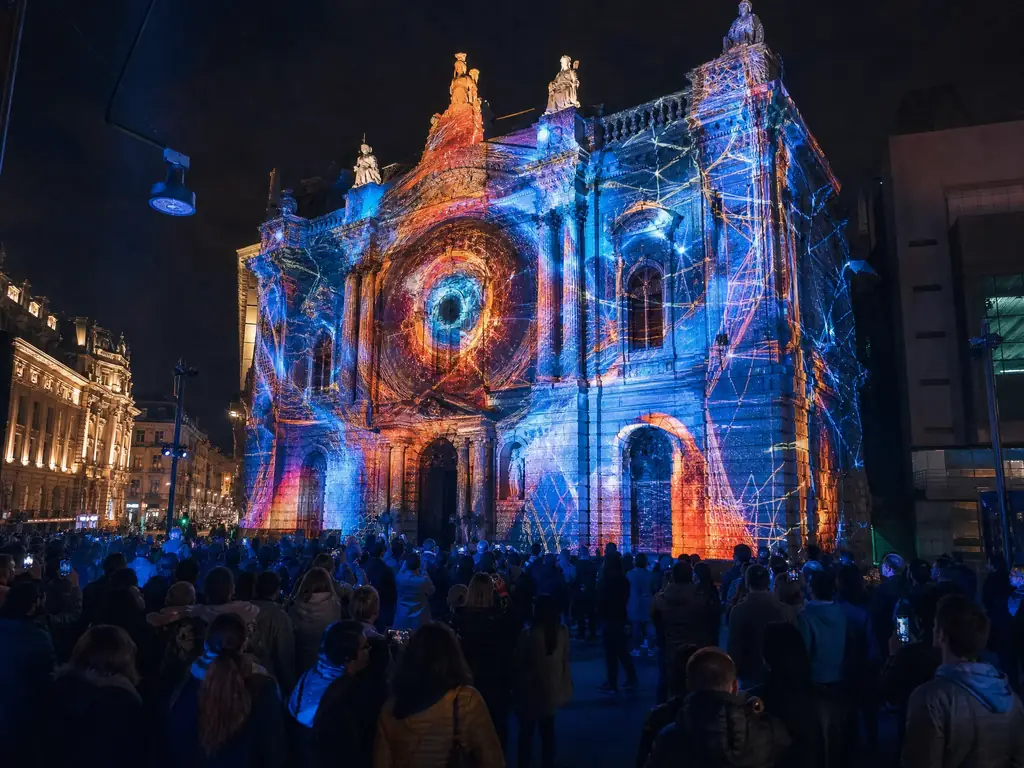

- Projection-mapped facades: 8 building facades with high-lumen laser projectors (30,000 lm each) — real-time content CMS synced to venue DJ/performance schedules, interactive LiDAR tracking for crowd engagement
- Dynamic wayfinding: 150 blade signs with e-ink/e-paper displays — real-time venue occupancy (green/yellow/red), wait times, cover charges, integrated with ticketing/PoS APIs
- Rooftop bar identification: halo-lit stainless steel letters on parapet walls, visible from adjacent towers and street level, 3000K warm-white
- Alleyway art lighting: 500m of linear LED graze lighting on brick/stone alley walls — programmable color scenes, DMX/RDM, enhances pedestrian safety and Instagram-ability
- Emergency egress: photoluminescent/LED hybrid exit signs integrated with district fire command, crowd-flow simulation validated (Crowd Dynamics)
Technical Specifications
- All exterior: C5-M marine (ISO 12944-5), wind load Zone 4 (JIS A 8304), seismic Zone 4
- Neon: glass tube (hand-bent) + LED neon flex (silicone extrusion), DMX512, 120 LEDs/m, IP67
- Infinity mirrors: two-way mirror acrylic 6mm, addressable SK6812 RGBW, IP68 base
- Projection: 30,000 lm laser phosphor, 4K, edge-blend, LiDAR interactive (Hokuyo UST-30LX)
- Dynamic blades: e-ink 13.3″ (4800×3600), BLE 5.0, 6-month battery, PoE optional
- Control: GrandMA3 + custom district CMS, Art-Net/sACN, MQTT for occupancy APIs, redundant 10G fiber ring
Result
Grand opening weekend: 280,000 visitors (vs. 180K target). Social media: #districtname 1.2M posts in month 1 (TikTok/IG/Xiaohongshu). Venue occupancy: dynamic wayfinding reduced “venue full” complaints by 73%. Average dwell time increased 22 min (venue analytics). The infinity mirror portals and neon alleyways became the city’s top 3 geo-tagged locations. Typhoon resilience: zero damage through 2024 season (3 direct hits). The district CMS is now licensed to 3 other developers in the region.
